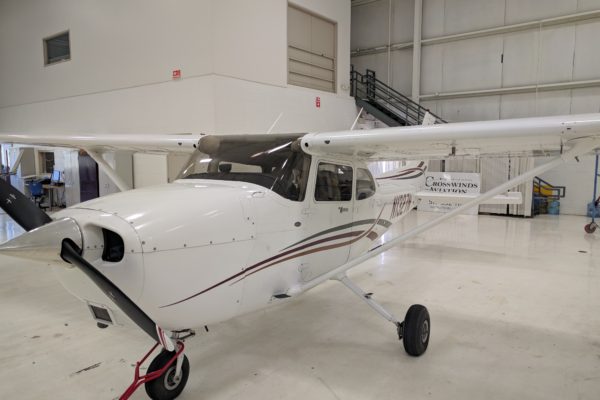

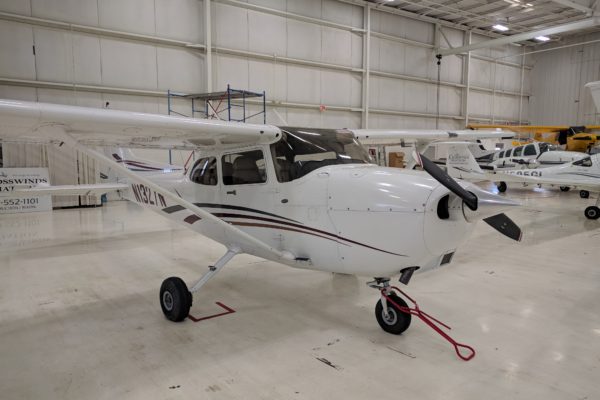

N1327N is a member of the Cessna 172S fleet at Crosswinds Aviation.

This particular aircraft has a Garmin GTX 345 transponder installed. As a result, not only does this enable ADS-B Out and In, but it also allows weather, traffic, position, and attitude data to be sent to ForeFlight and Garmin Pilot via Bluetooth connectivity.

For more information on Garmin Connext, please take a look at their brochure.

General Aircraft Information
Engine and Prop Specs
Avionics
Fuel & Oil
Weights & Capacities
Aircraft Speeds
Performance
Aircraft Documentation
General Aircraft Information
Make Cessna
Model 172S
Year 2006
Category Utility / Normal
Span / Length / Height 36 ft. 1 in. / 27 ft. 2 in. / 8 ft. 11 in.
Permitted Operations Day and Night VFR and IFR
Panel Garmin G1000
Engine Lycoming IO-360-L2A (180hp @ 2700 RPM)
Propeller Type Fixed Pitch
Gear Configuration Fixed Tricycle w/ Steerable Nosewheel
Body Construction Sheet metal
ADS-B In / Out
Engine and Prop Specs
Model Lycoming IO-360-L2A
No. Cylinders 4
Displacement 360 cu. in.
Output 180hp @ 2700 RPM
Fuel Delivery Fuel Injection
Propeller Type Fixed Pitch
Propeller Manufacturer McCauley Propeller Systems

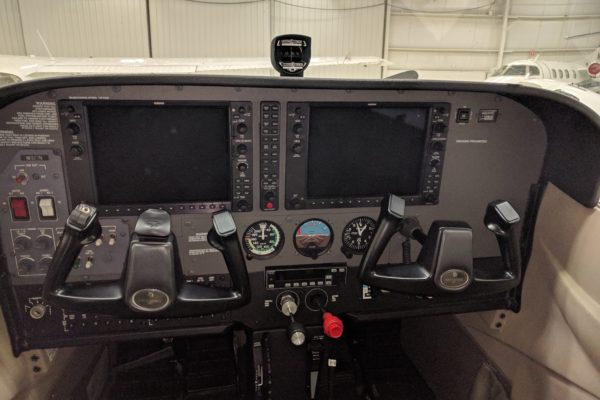

Avionics
PFD / MFD Garmin G1000
GPS Garmin GIA 63
Transponder Garmin GTX 345
Audio Panel Garmin GMA 1347
COM 1 Garmin GIA 63
NAV 1 Garmin GIA 63
COM 2 Garmin GIA 63
NAV 2 Garmin GIA 63
Autopilot Bendix King KAP 140
Fuel & Oil
Total Fuel Capacity 56 Gallons
Usable Fuel Capacity 53 Gallons
Fuel Type 100LL
Oil Quantity 8 Qts.
Weights & Capacities
Max Ramp Weights Normal: 2558 lbs.
Utility: 2208 lbs.
Max Takeoff Weights Normal: 2550 lbs.
Utility: 2200 lbs.
Max Landing Weight Normal: 2550 lbs.
Utility: 2200 lbs.
Aircraft Specific Basic Empty Weight & Arm 1747.4 lbs. @ 41.56 in.
Max Useful Load Normal: 802.6 lbs.
Utility: 452.6 lbs.
Useful Load w/ Full Usable Fuel Normal: 484.6 lbs.
Utility: 134.6 lbs.
Baggage Capacities Area A: 120 lbs.
Area B: 50 lbs.
*Max A + B is 120 lbs*
Aircraft Speeds
Climb Speeds
Cruise Climb 80 KIAS
Best Rate Climb – Flaps Up (VY) Sea Level: 74 KIAS
10,000 Ft.: 72 KIAS
Best Angle Climb – Flaps Up (VX) Sea Level: 74 KIAS
10,000 Ft.: 72 KIAS
Landing Speeds
Normal Landing Flaps Up: 70 KIAS
Flaps Full: 65 KIAS
Go Around Climb – Flaps 20 60 KIAS
Max Demonstrated Crosswind Component 15 KTS
Airspeed Limitations
Never Exceed Speed (VNE) 163 KIAS
Max Structural Cruising Speed (VNO) 129 KIAS
Maneuvering Speeds (VA) 1900 lbs.: 90 KIAS
2200 lbs.: 98 KIAS
2550 lbs.: 105 KIAS
Max Flap Extended Speed – Flaps 10 (VFE) 110 KIAS
Max Flap Extended Speed – Flaps 10 – Full (VFE) 85 KIAS
Clean Stall Speeds (VS) 48 KIAS
Landing Stall Speeds (VS0) 40 KIAS
Performance
Glide Ratio 1.6 NM / 1000 ft. @ 68 KIAS
Max Demonstrated Crosswind Component 15 KTS
Max Cruise Speed / Fuel Burn 125 KTAS / 11.1 gph (8,000 ft. @ 20c Below Std. temp @ 2700 RPM)
Service Ceiling 14,000 ft.
Sea Level Climb @ Max T/O Weight & 20c. 710 fpm (Flaps Cruise @ 74 KIAS)
Wing Loading 14.7 lbs./sq. ft. (Max T/O Weight)
Power Loading 14.2 lbs./hp (Max T/O Weight)
