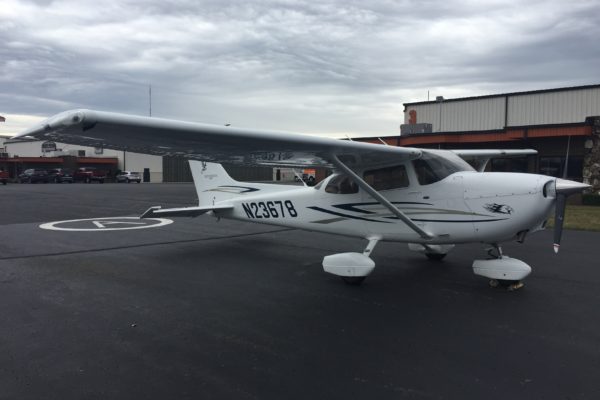

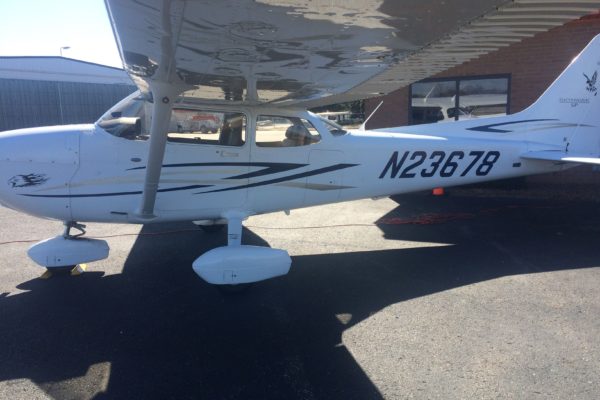

N23678 is a member of the Cessna 172S fleet at Crosswinds Aviation.

Being a 2007 model, this particular aircraft has a WAAS enabled GPS, allowing LPV approaches.

General Aircraft Information
Engine and Prop Specs
Avionics
Fuel & Oil
Weights & Capacities
Aircraft Speeds
Performance
Aircraft Documentation
General Aircraft Information
Make Cessna
Model 172S
Year 2007
Category Utility / Normal
Span / Length / Height 36 ft. 1 in. / 27 ft. 2 in. / 8 ft. 11 in.
Permitted Operations Day and Night VFR and IFR
Panel Garmin G1000
Engine Lycoming IO-360-L2A (180hp @ 2700 RPM)
Propeller Type Fixed Pitch
Gear Configuration Fixed Tricycle w/ Steerable Nosewheel
Body Construction Sheet metal
ADS-B N/A
Engine and Prop Specs
Model Lycoming IO-360-L2A
No. Cylinders 4
Displacement 360 cu. in.
Output 180hp @ 2700 RPM
Fuel Delivery Fuel Injection
Propeller Type Fixed Pitch
Propeller Manufacturer McCauley Propeller Systems
Avionics
PFD / MFD Garmin G1000
GPS Garmin GIA 63W
Transponder Garmin GTX 33
Audio Panel Garmin GMA 1347
COM 1 Garmin GIA 63W
NAV 1 Garmin GIA 63W
COM 2 Garmin GIA 63W
NAV 2 Garmin GIA 63W
Autopilot Bendix King KAP 140
Fuel & Oil
Total Fuel Capacity 56 Gallons
Usable Fuel Capacity 53 Gallons
Fuel Type 100LL
Oil Quantity 8 Qts.
Weights & Capacities
Max Ramp Weights Normal: 2558 lbs.
Utility: 2208 lbs.
Max Takeoff Weights Normal: 2550 lbs.
Utility: 2200 lbs.
Max Landing Weight Normal: 2550 lbs.
Utility: 2200 lbs.
Aircraft Specific Basic Empty Weight & Arm 1750.4 lbs. @ 41.77 in.
Max Useful Load Normal: 807.6 lbs.
Utility: 449.6 lbs.
Useful Load w/ Full Usable Fuel Normal: 489.6 lbs.
Utility: 131.6 lbs.
Baggage Capacities Area A: 120 lbs.
Area B: 50 lbs.
*Max A + B is 120 lbs*
Aircraft Speeds
Climb Speeds
Cruise Climb 80 KIAS
Best Rate Climb – Flaps Up (VY) Sea Level: 74 KIAS
10,000 Ft.: 72 KIAS
Best Angle Climb – Flaps Up (VX) Sea Level: 74 KIAS
10,000 Ft.: 72 KIAS
Landing Speeds
Normal Landing Flaps Up: 70 KIAS
Flaps Full: 65 KIAS
Go Around Climb – Flaps 20 60 KIAS
Max Demonstrated Crosswind Component 15 KTS
Airspeed Limitations
Never Exceed Speed (VNE) 163 KIAS
Max Structural Cruising Speed (VNO) 129 KIAS
Maneuvering Speeds (VA) 1900 lbs.: 90 KIAS
2200 lbs.: 98 KIAS
2550 lbs.: 105 KIAS
Max Flap Extended Speed – Flaps 10 (VFE) 110 KIAS
Max Flap Extended Speed – Flaps 10 – Full (VFE) 85 KIAS
Clean Stall Speeds (VS) 48 KIAS
Landing Stall Speeds (VS0) 40 KIAS
Performance
Glide Ratio 1.6 NM / 1000 ft. @ 68 KIAS
Max Demonstrated Crosswind Component 15 KTS
Max Cruise Speed / Fuel Burn 125 KTAS / 11.1 gph (8,000 ft. @ 20c Below Std. temp @ 2700 RPM)
Service Ceiling 14,000 ft.
Sea Level Climb @ Max T/O Weight & 20c. 710 fpm (Flaps Cruise @ 74 KIAS)
Wing Loading 14.7 lbs./sq. ft. (Max T/O Weight)
Power Loading 14.2 lbs./hp (Max T/O Weight)
